Specifications

SPECIFICATIONS NISSAN NAVARA KING CAB

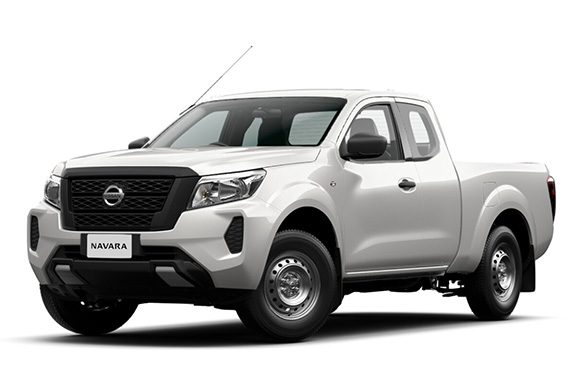

S 6MT

Starting price

Equipment Includes

Zone Body Structure
Air Conditioning System
Multi Information Display : Digital type
Side Impact Door Beam
Crashable Steering Column

Overview

Diesel YD25DDTi In-line 4-cylinder DOHC 16 valves VGS Turbo Intercooler

Starting price

Equipment Includes

2,488

cc

Engine Capacity

Engine Capacity
Engine Capacity The capacity of the engine in cc
120 (163) / 3600

PS

Max Power

Max Power
Max Power The power generated by the engine in PS
4

N

Cylinders

Cylinders
Cylinders Number of cylinders the car has

Specs

Your Version

Engine

Fuel Type

Diesel
Induction Capacity (cc)

2,488
No. Of Cylinders

4
Max. Torque N-m (Kg-m) /rpm

403 (41.1) / 2000
Max. Power Kw (hp) /rpm

120 (163) / 3600
Engine Type

YD25DDTi In-line 4-cylinder DOHC 16 valves VGS Turbo Intercooler
Bore x Stroke (mm.)

89.0 x 100.0
Fuel Tank Capacity (Liters)

80

DIMENSION & WEIGHT

Overall Length (mm.)

5,230
Overall Width (mm.)

1,790
Overall Height (mm.)

1,725
Wheelbase (mm.)

3,150
Tread Front (mm.)

1,560
Tread Rear (mm.)

1,560
Ground Clearance (mm.)

180
Turning Radius (m.)

6.0
Weight (Kg.)

1,766

TRANSMISSION

Transmission

6MT
Final Gear Ratios

3.538

STEERING

Steering Type

Rack and Pinion

SUSPENSION

Suspension (Front)

Independent double-wishbone Coil spring with front stabilizer bar
Suspension (Rear)

Multi-leaf with shock absorber

BRAKES

Brakes (Front)

Ventilated disc
Brakes (Rear)

Drum brake with load-sensing proportioning valves (LSV)

Equipment

Your Version

EXTERIOR

Front Grille : Black
Front Bumper : Body Color
Rear Spoiler
Front Headlamp : Halogen
Outside Door Mirror : Black color and Electric Adjustable
Outside Door Handle (Grip type) : Black
Front Wiper : 2 speed with variable intermittent
Mud Guard : Front and Rear

INTERIOR

Interior Color : Beige
Front Control Dashboard (Audio and Air-con) : Black
Center console with 12V output : With lid and 2 cup holder
Ventilation for rear seat
Door Pocket : Front and Rear with bottle holder
Device Connector : USB / AUX
No. of Speakers : 2
Device Connector : USB / AUX
Air Conditioning System
Power Steering : Urethane type
Gear Knob
Tachometer and Digital odometer
Multi Information Display : Digital type
Digital Clock
Power Window : One touch auto up/down, Anti-pinch (DR side only)
Central Door Lock
Seat : Separate type, Seat/Door trim material; Cloth, Beige color
Front Seat : DR side 4-way adjustment, AS side 4-way adjustment and Headrest
Front Sun Visor
Room lamp, Map lamp
Room mirror with dimming

SAFETY

Dual Front Airbag
Laminated Glass
High Mount Stop Lamp (LED Type)
Seatbelt : Front seat; ELR 3 points x 2 with pretensioner and load limiter, Adjustable
Remote Key
Zone Body Structure
Side Impact Door Beam
Crashable Steering Column
Automatic Fuel Valve Cut (when rollover)

WHEELS & TIRES

Steel 15 x 5.5J
Tires 195R15C

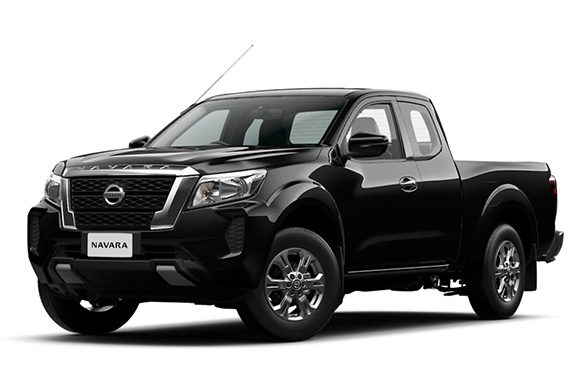

E 6MT

Starting price

Equipment Includes

Zone Body Structure
Air Conditioning System
Multi Information Display : Digital type
Side Impact Door Beam
Crashable Steering Column

Overview

Diesel YD25DDTi In-line 4-cylinder DOHC 16 valves VGS Turbo Intercooler

Starting price

Equipment Includes

2,488

cc

Engine Capacity

Engine Capacity
Engine Capacity The capacity of the engine in cc
120 (163) / 3600

PS

Max Power

Max Power
Max Power The power generated by the engine in PS
4

N

Cylinders

Cylinders
Cylinders Number of cylinders the car has

Specs

Your Version

Engine

Fuel Type

Diesel
Induction Capacity (cc)

2,488
No. Of Cylinders

4
Max. Torque N-m (Kg-m) /rpm

403 (41.1) / 2000
Max. Power Kw (hp) /rpm

120 (163) / 3600
Engine Type

YD25DDTi In-line 4-cylinder DOHC 16 valves VGS Turbo Intercooler
Bore x Stroke (mm.)

89.0 x 100.0
Fuel Tank Capacity (Liters)

80

DIMENSION & WEIGHT

Overall Length (mm.)

5,230
Overall Width (mm.)

1,790
Overall Height (mm.)

1,745
Wheelbase (mm.)

3,150
Tread Front (mm.)

1,550
Tread Rear (mm.)

1,550
Ground Clearance (mm.)

205
Turning Radius (m.)

6.0
Weight (Kg.)

1,776

TRANSMISSION

Transmission

6MT
Final Gear Ratios

3.692

STEERING

Steering Type

Rack and Pinion

SUSPENSION

Suspension (Front)

Independent double-wishbone Coil spring with front stabilizer bar
Suspension (Rear)

Multi-leaf with shock absorber

BRAKES

Brakes (Front)

Ventilated disc
Brakes (Rear)

Drum brake with load-sensing proportioning valves (LSV)

Equipment

Your Version

EXTERIOR

Front Grille : Chrome
Front Bumper : Body Color
Front Headlamp : Halogen
Outside Door Mirror : Chrome, Electric adjustable
Outside Door Handle (Grip type) : Chrome
Front Wiper : 2 speed with variable intermittent
Mud Guard : Front and Rear

INTERIOR

Interior Color : Beige
Front Control Dashboard (Audio and Air-con) : Black
Center console with 12V output : With lid and 2 cup holder
Ventilation for rear seat
Door Pocket : Front and Rear with bottle holder
Audio : FM / AM, CD, MP3 with 5’’ display audio
No. of Speakers : 2
Device Connector : USB / AUX
Air Conditioning System
Power Steering : Tilt Adjustment, Urethane with silver finisher Type
Gear Knob
Tachometer and Digital odometer
Multi Information Display : Digital type
Digital Clock
Power Window : One touch auto up/down, Anti-pinch (DR side only)
Central Door Lock
Seat : Separate type, Seat/Door trim material; Cloth, Beige color
Front Seat : DR side 4-way adjustment, AS side 4-way adjustment and Headrest
Front Sun Visor
Room lamp, Map lamp
Room mirror with dimming

SAFETY

Dual Front Airbag
Laminated Glass
Rear Defogger
High Mount Stop Lamp (LED Type)
Seatbelt : Front seat; ELR 3 points x 2 with pretensioner and load limiter, Adjustable
Remote Key
Zone Body Structure
Side Impact Door Beam
Crashable Steering Column
Automatic Fuel Valve Cut (when rollover)

WHEELS & TIRES

Alloy 16 x 6J
Tires 205R16C

Calibre E 6MT Black Edition

Starting price

Equipment Includes

Front Grille : Black
Front Bumper : Body color with black paint at front lower and orange accent
Seat: Separate type, Seat/Door trim material; Leather, PU and Fabric/Leather, Black and orange color
Cruise Control
Air Conditioning System

Overview

Diesel YD25 In-line 4-cylinder DOHC 16 valves VGS Turbo Intercooler

Starting price

Equipment Includes

2,488

cc

Engine Capacity

Engine Capacity
Engine Capacity The capacity of the engine in cc
120 (163) / 3600

PS

Max Power

Max Power
Max Power The power generated by the engine in PS
4

N

Cylinders

Cylinders
Cylinders Number of cylinders the car has

Specs

Your Version

Engine

Fuel Type

Diesel
Induction Capacity (cc)

2,488
No. Of Cylinders

4
Max. Torque N-m (Kg-m) /rpm

403 (41.1) / 2000
Max. Power Kw (hp) /rpm

120 (163) / 3600
Engine Type

YD25 In-line 4-cylinder DOHC 16 valves VGS Turbo Intercooler
Bore x Stroke (mm.)

89.0 x 100.0
Fuel Tank Capacity (Liters)

80

DIMENSION & WEIGHT

Overall Length (mm.)

5,255
Overall Width (mm.)

1,850
Overall Height (mm.)

1,755
Wheelbase (mm.)

3,150
Tread Front (mm.)

1,570
Tread Rear (mm.)

1,570
Ground Clearance (mm.)

215
Turning Radius (m.)

6.3
Weight (Kg.)

1,818

TRANSMISSION

Transmission

6MT
Final Gear Ratios

3.917

STEERING

Steering Type

Rack and Pinion

SUSPENSION

Suspension (Front)

Independent double-wishbone Coil spring with front stabilizer bar
Suspension (Rear)

Multi-leaf with shock absorber

BRAKES

Brakes (Front)

Ventilated disc
Brakes (Rear)

Drum brake

Equipment

Your Version

EXTERIOR

Front Grille : Black
Front Bumper : Body color with black paint at front lower and orange accent
Rear Bumper : Black
Rear Spoiler
Front Headlamp : LED projector with black frame, LED Positioning
Daytime Running Light
Front Fog Lamp : Black frame
Outside Door Mirror : Glossy black with orange accent, Electric adjustable with electric foldable, LED turning lamp
Outside Door Handle (Grip type) : Black
Side Step : Black paint with orange accent
Front Wiper : 2 speed with variable intermittent
Mud Guard : Front and Rear

INTERIOR

Interior Color : Black
Front Control Dashboard (Audio and Air-con) : Black with piano black decoration
Center console with 12V output : With lid and 2 cup holder
Ventilation for rear seat
Door Pocket : Front and Rear with bottle holder
Audio : FM / AM, CD, MP3 with 5’’ display audio
No. of Speakers : 4
Device Connector : USB / AUX
Air Conditioning System
Power Steering : Tilt Adjustment, Leather wrapped with silver finisher and orange stitches, Audio switch
Gear Knob
Tachometer, Digital odometer, Fine version
Multi Information Display : 3D Display
Digital Clock
Bluetooth Connection
Power Window : One touch auto up/down, Anti-pinch (DR side only)
Central Door Lock
Seat: Separate type, Seat/Door trim material; Leather, PU and Fabric/Leather, Black and orange color
Front Seat : DR side 6-way adjustment, AS side 4-way adjustment and Headrest
Front Sun Visor
Room lamp, Map lamp
Sunglass Holder
Room mirror with dimming
Cruise Control
Push Start

SAFETY

ABS with EBD and BA
Dual Front Airbag
Laminated Glass
Rear Defogger
High Mount Stop Lamp (LED Type)
Seatbelt : Front seat; ELR 3 points x 2 with pretensioner and load limiter with seatbelt reminder, Adjustable
Remote Key with Immobilizer and VSS Alarm
Intelligent Key
Rear View Camera
Zone Body Structure
Side Impact Door Beam
Crashable Steering Column
Automatic Fuel Valve Cut (when rollover)

WHEELS & TIRES

Black Alloy 18 X 7J
Tires 255/60R18

Calibre EL 6MT

Starting price

Equipment Includes

Around View Monitor
NISSAN CONNECT
Daytime Running Light
Air Conditioning System : Push botton
Multi Information Display : 3D Display

Overview

Diesel YD25DDTi In-line 4-cylinder DOHC 16 valves VGS Turbo Intercooler

Starting price

Equipment Includes

2,488

cc

Engine Capacity

Engine Capacity
Engine Capacity The capacity of the engine in cc
120 (163) / 3600

PS

Max Power

Max Power
Max Power The power generated by the engine in PS
4

N

Cylinders

Cylinders
Cylinders Number of cylinders the car has

Specs

Your Version

Engine

Fuel Type

Diesel
Induction Capacity (cc)

2,488
No. Of Cylinders

4
Max. Torque N-m (Kg-m) /rpm

403 (41.1) / 2000
Max. Power Kw (hp) /rpm

120 (163) / 3600
Engine Type

YD25DDTi In-line 4-cylinder DOHC 16 valves VGS Turbo Intercooler
Bore x Stroke (mm.)

89.0 x 100.0
Fuel Tank Capacity (Liters)

80

DIMENSION & WEIGHT

Overall Length (mm.)

5,255
Overall Width (mm.)

1,850
Overall Height (mm.)

1,750
Wheelbase (mm.)

3,150
Tread Front (mm.)

1,570
Tread Rear (mm.)

1,570
Ground Clearance (mm.)

219
Turning Radius (m.)

6.3
Weight (Kg.)

1,818

TRANSMISSION

Transmission

6MT
Final Gear Ratios

3.917

STEERING

Steering Type

Rack and Pinion

SUSPENSION

Suspension (Front)

Independent double-wishbone Coil spring with front stabilizer bar
Suspension (Rear)

Multi-leaf with shock absorber

BRAKES

Brakes (Front)

Ventilated disc
Brakes (Rear)

Drum brake

Equipment

Your Version

EXTERIOR

Front Grille : Chrome
Front Bumper : Body Color
Rear Bumper : Chrome
Rear Spoiler
Front Headlamp : LED projector with black frame, LED Positioning
Daytime Running Light
Front Fog Lamp
Outside Door Mirror : Chrome, Electric adjustable with electric foldable, LED turning lamp
Outside Door Handle (Grip type) : Chrome
Side Step : Black
Front Wiper : 2 speed with variable intermittent
Mud Guard : Front and Rear

INTERIOR

Interior Color : Black
Front Control Dashboard (Audio and Air-con) : Black with piano black decoration
Center console with 12V output : With lid and 2 cup holder
Ventilation for rear seat
Door Pocket : Front and Rear with bottle holder
NISSAN CONNECT
Audio : FM / AM, CD, MP3 with 8’’ touch screen
No. of Speakers : 4
Device Connector : USB / AUX
Air Conditioning System : Push botton
Power Steering : Tilt Adjustment, Leather type, Audio switch
Gear Knob
Tachometer, Digital odometer and Fine vision
Multi Information Display : 3D Display
Digital Clock
Bluetooth Connection
Power Window : One touch auto up/down, Anti-pinch (DR side only)
Central Door Lock
Seat : Separate type, Seat/Door trim material; Cloth, Black color
Front Seat : DR side 6-way adjustment, AS side 4-way adjustment and Headrest
Front Sun Visor
Room lamp, Map lamp
Sunglass Holder
Room mirror with auto dimming and compass
Cruise Control
Push Start

SAFETY

ABS with EBD and BA
Dual Front Airbag
Laminated Glass
Rear Defogger
High Mount Stop Lamp (LED Type)
Seatbelt : Front seat; ELR 3 points x 2 with pretensioner and load limiter, Adjustable
Remote Key with Immobilizer and VSS Alarm
Intelligent Key
Rear View Camera
Around View Monitor
Zone Body Structure
Side Impact Door Beam
Crashable Steering Column
Automatic Fuel Valve Cut (when rollover)

WHEELS & TIRES

Alloy 16 x 7J
Tires 255/70R16

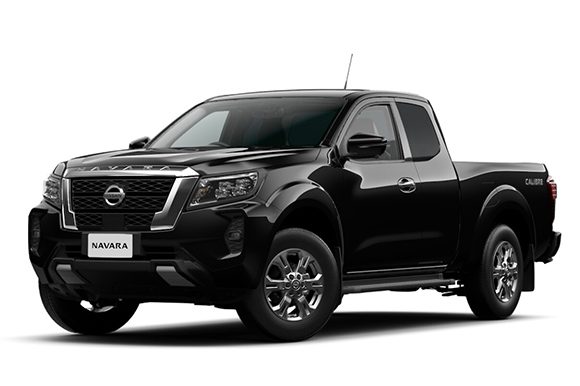

Calibre V 7AT

Starting price

Equipment Includes

Around View Monitor
Daytime Running Light
NISSAN CONNECT
Air Conditioning System : Automatic Dual Zone
Multi Information Display : 3D Display

Overview

Diesel YD25DDTi In-line 4-cylinder DOHC 16 valves VGS Turbo Intercooler

Starting price

Equipment Includes

2,488

cc

Engine Capacity

Engine Capacity
Engine Capacity The capacity of the engine in cc
120 (163) / 3600

PS

Max Power

Max Power
Max Power The power generated by the engine in PS
4

N

Cylinders

Cylinders
Cylinders Number of cylinders the car has

Specs

Your Version

Engine

Fuel Type

Diesel
Induction Capacity (cc)

2,488
No. Of Cylinders

4
Max. Torque N-m (Kg-m) /rpm

403 (41.1) / 2000
Max. Power Kw (hp) /rpm

120 (163) / 3600
Engine Type

YD25DDTi In-line 4-cylinder DOHC 16 valves VGS Turbo Intercooler
Bore x Stroke (mm.)

89.0 x 100.0
Fuel Tank Capacity (Liters)

80

DIMENSION & WEIGHT

Overall Length (mm.)

5,255
Overall Width (mm.)

1,850
Overall Height (mm.)

1,750
Wheelbase (mm.)

3,150
Tread Front (mm.)

1,570
Tread Rear (mm.)

1,570
Ground Clearance (mm.)

219
Turning Radius (m.)

6.3
Weight (Kg.)

1,841

TRANSMISSION

Transmission

7AT with M mode
Final Gear Ratios

3.357

STEERING

Steering Type

Rack and Pinion

SUSPENSION

Suspension (Front)

Independent double-wishbone Coil spring with front stabilizer bar
Suspension (Rear)

Multi-leaf with shock absorber

BRAKES

Brakes (Front)

Ventilated disc
Brakes (Rear)

Drum brake

Equipment

Your Version

EXTERIOR

Front Grille : Chrome
Front Bumper : Body color w/ Black paint at front lower
Rear Bumper : Chrome
Rear Spoiler
Front Headlamp : LED projector with black frame, LED Positioning, Auto On-Off
Daytime Running Light
Front Fog Lamp
Outside Door Mirror : Chrome, Electric adjustable with electric foldable, LED turning lamp
Outside Door Handle (Grip type) : Chrome
Side Step : Silver
Front Wiper : 2 speed with variable intermittent
Mud Guard : Front and Rear

INTERIOR

Interior Color : Black
Front Control Dashboard (Audio and Air-con) : Black with piano black decoration
Center console with 12V output : With lid and 2 cup holder
Ventilation for rear seat
Door Pocket : Front and Rear with bottle holder
NISSAN CONNECT
Audio : FM / AM, CD, MP3 with 8’’ touch screen
Navigation System
No. of Speakers : 4
Device Connector : USB / AUX
Air Conditioning System : Automatic Dual Zone
Power Steering : Tilt Adjustment, Leather type, Audio switch
Gear Knob Leather
Tachometer, Digital odometer and Fine vision
Multi Information Display : 3D Display
Digital Clock
Bluetooth Connection
Power Window : One touch auto up/down, Anti-pinch (DR side only)
Central Door Lock
Seat : Separate type, Seat/Door trim material; Leather / PU, Black color
Front Seat : DR side 6-way adjustment, AS side 4-way adjustment and Headrest
Front Sun Visor
Room lamp, Map lamp
Sunglass Holder
Room mirror with auto dimming and compass
Cruise Control
Push Start

SAFETY

ABS with EBD and BA
Dual Front Airbag
Laminated Glass
Rear Defogger
High Mount Stop Lamp (LED Type)
Seatbelt : Front seat; ELR 3 points x 2 with pretensioner and load limiter, Adjustable
Remote Key with Immobilizer and VSS Alarm
Intelligent Key
Rear View Camera
Around View Monitor
Zone Body Structure
Side Impact Door Beam
Crashable Steering Column
Automatic Fuel Valve Cut (when rollover)

WHEELS & TIRES

Sporty Alloy 18 x 7J
Tires 255/60R18

* บริษัท นิสสันมอเตอร์ (ประเทศไทย) จำกัด ขอสงวนสิทธิ์ในการเปลี่ยนแปลงรายละเอียดด้านเทคนิคและอุปกรณ์ต่างๆ โดยไม่ต้องแจ้งให้ทราบล่วงหน้า

** เพื่อข้อมูลที่ครบถ้วน กรุณาหาข้อมูลจากโบรชัวร์ในรถรุ่นนั้นๆ

*** ภาพที่แสดงเป็นของนิสสัน นาวารา รุ่น Calibre EL 6MT

****สำหรับรุ่นแบล็ค อิดิชั่น ทุกรุ่น ราคารวมอุปกรณ์ตกแต่งซุ้มล้อ จำหน่ายและติดตั้งโดยผู้จำหน่ายนิสสัน
